AUTO-SENSOR BASED RIPENING SOLUTION
Ethylene Based Fully Automatic System to enhance the ripened fruit quality

MCS is providing new generation of technology in post-harvest solution since 2015. We provide most reliable and economic solutions in ripening process. Our product is very efficient to create most natural environment in the ripening room to ripen the fruit carrying its natural properties.

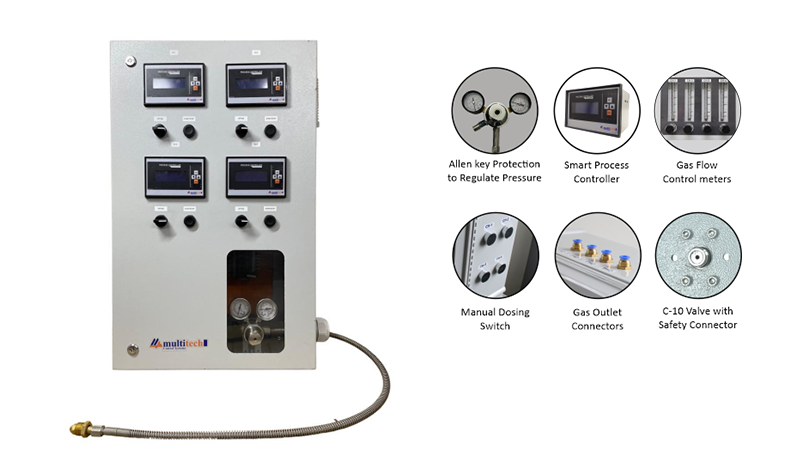

All in one Ripening Process Panel

MCS is providing different variants of ripening process panel based on customer business scale. As per final design we customize the panel to control ripening up to 5 chambers in single unit.
All in 1 panel is our most advanced & compact version of ripening unit which is very easy to install & operate and also it is very low maintenance design to get maximum efficient output in low cost.
Ripening Panel is brain of the system which controls other devices to provide most suitable natural environment to the fruit inside the ripening chamber by which customer can get 100% natural ripened fruit with its natural taste, odor, firmness, and color.

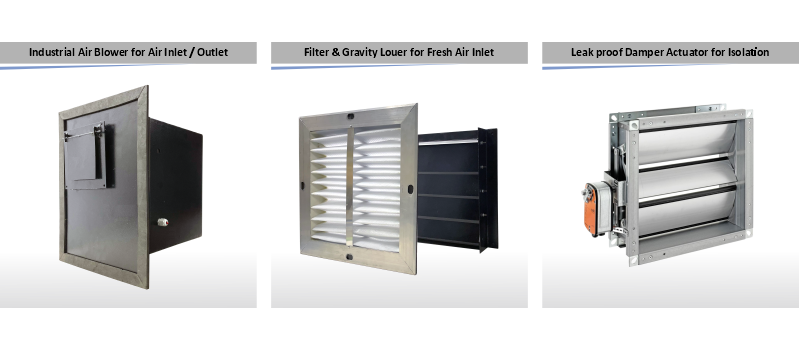

Air Vent & Co2 Control

- 3 Layer Air Filter to prevent from dust / insect entering into the Ripening Chamber
- MS powder Coated Gravity Louvers to minimize Heat loss.
- Industrial Blower with Powder Coated Housing for fresh air inlet with pressure.
- Gravity Damper to prevent Heat loss with Anti Insect Filter to prevent insect entering into the Chamber.
- 4 “ Nozzle for PVC Ducting if Required
- Customized Design as per Room Size
- Leak proof Aluminum Damper for Zero Leakage & prevent heat losses.
- Motorized Damper-Actuator design with Powder Coated Housing.
- Gravity Damper to prevent Heat loss with Anti Insect Filter to prevent insect entering into the Chamber
- Industrial Blower With Powder Coated Housing for CO2 Exhaust with pressure

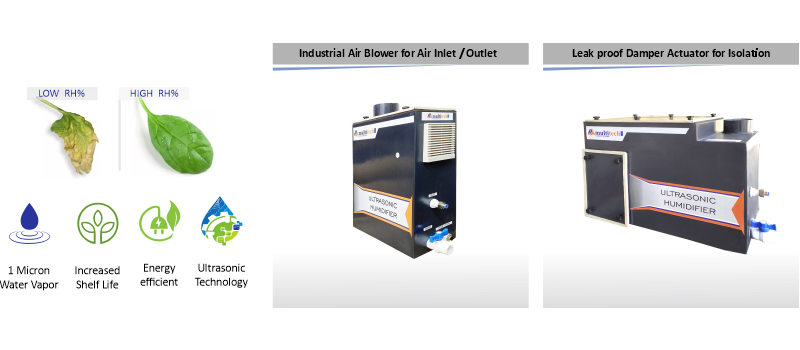

Humidity Control

MCS provides Ultrasonic Humidifiers which converts water droplets into water vapor up to 1 micron scale. In normal case below room temperature higher humidity is necessary for Fruits & Vegetables to avoid dry skin & weight losses.
MCS Humidifiers add water vapor in very energy efficient way without any cooling losses. Lower sized water vapor can easily get mixed with cold air without adding heat resistance.

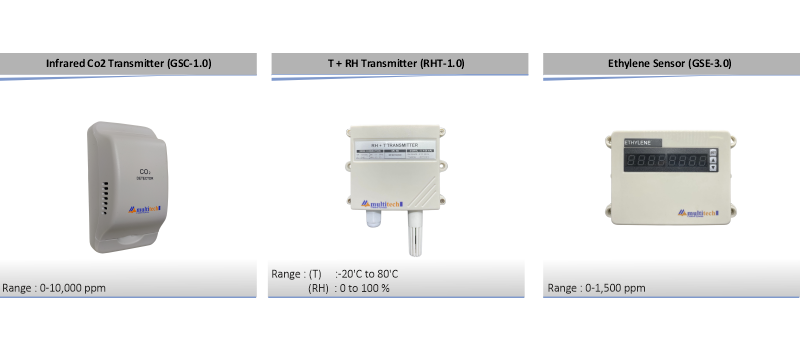

Sensors & Transmitters

We Provides Sensors Based System to Enhanced produce quality, reduced wastage, and longer shelf life in ripening chambers.
- Ethylene sensors: Monitor ethylene levels to prevent over-ripening and spoilage of fruits.
- CO2 sensors: Regulate CO2 levels for improved ventilation and extended shelf life.
- Temperature sensors: Ensure consistent temperatures for uniform ripening and better fruit quality.
- Humidity (RH) sensors: Control humidity to prevent mold growth and maintain fruit freshness.
