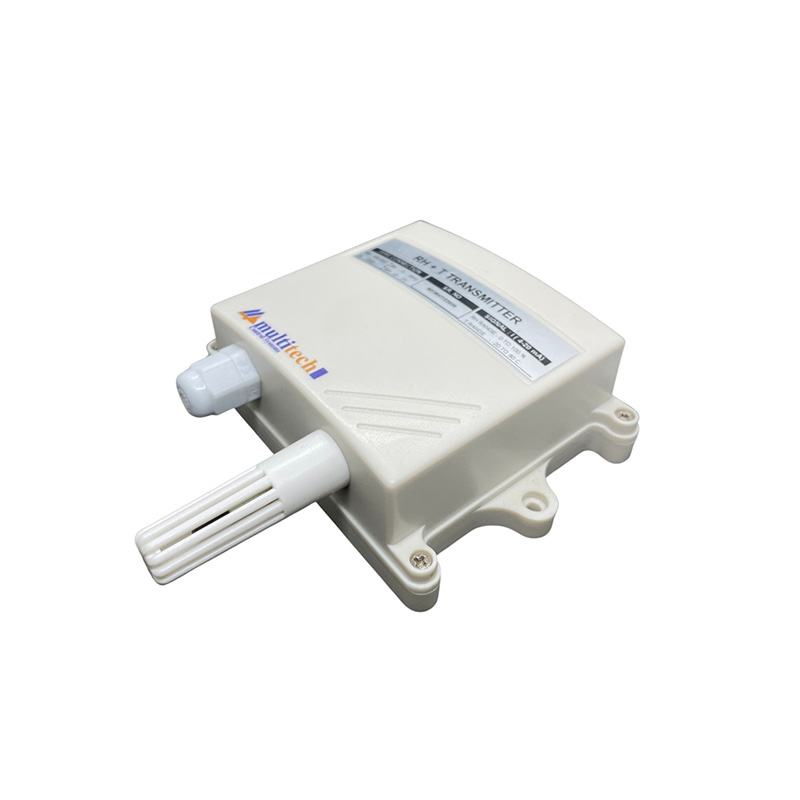

A Temp. + RH Transmitter, based on a unique capacitive cell is designed for high volume, cost sensitive applications such as office automation, automotive cabin air control, home appliances, Cold Room, Cold Storages, pharma, health care and industrial process control systems. They are also useful in all applications where humidity compensation is needed.
| Parameters | Description |
| Make | MULTITECH |
| Model | MCS-RHT-1.0 |
| Detection Range (RH) | 0%-100% RH. |
| Detection Range (Temp) | -20 to 80 C Temp. |
| Measurement Accuracy (Temp) | ± 0.5 C FSA. |
| Measurement Accuracy (RH) | ± 3% RH |
| Response Time (T90) | <10s (25 °C, in Slow air) |
| Power Supply | 15-24 Vdc( reverse polarity protected) |
| Output | 4-20 mA |
| Stability versus time | 1% per year |
| Operating Temperature | 0 to 60 °C |
| Below 95% RH (no condensation) | |
| Warranty | 12 Months Manufacturer Warranty |
- T+RH transmitters measure temperature and relative humidity.
- It provide Wide detection range, high accuracy, rapid response time.
- 4-20 mA output: Seamless integration with other systems and devices.
- Operating temperature: Suitable for environments ranging from 0 to 60°C.
- Calibration and adjustment procedures ensure measurement accuracy.
- It come in various housing designs for different mounting options.
- T+RH transmitters can integrate with other systems and devices.
